Overview

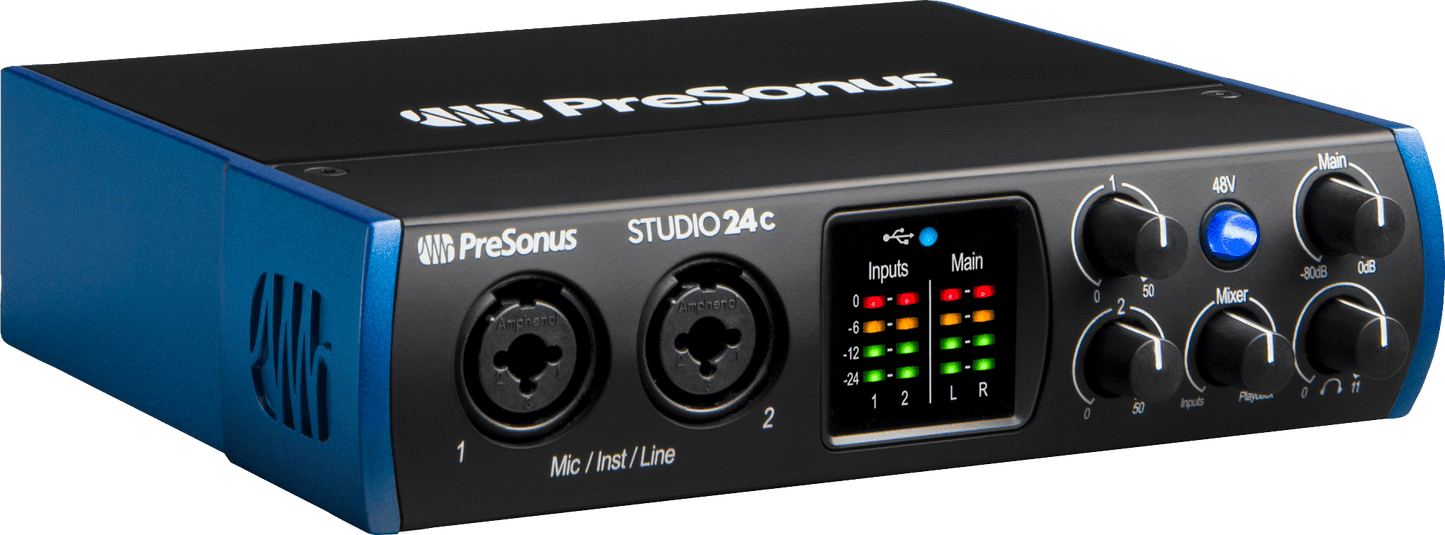

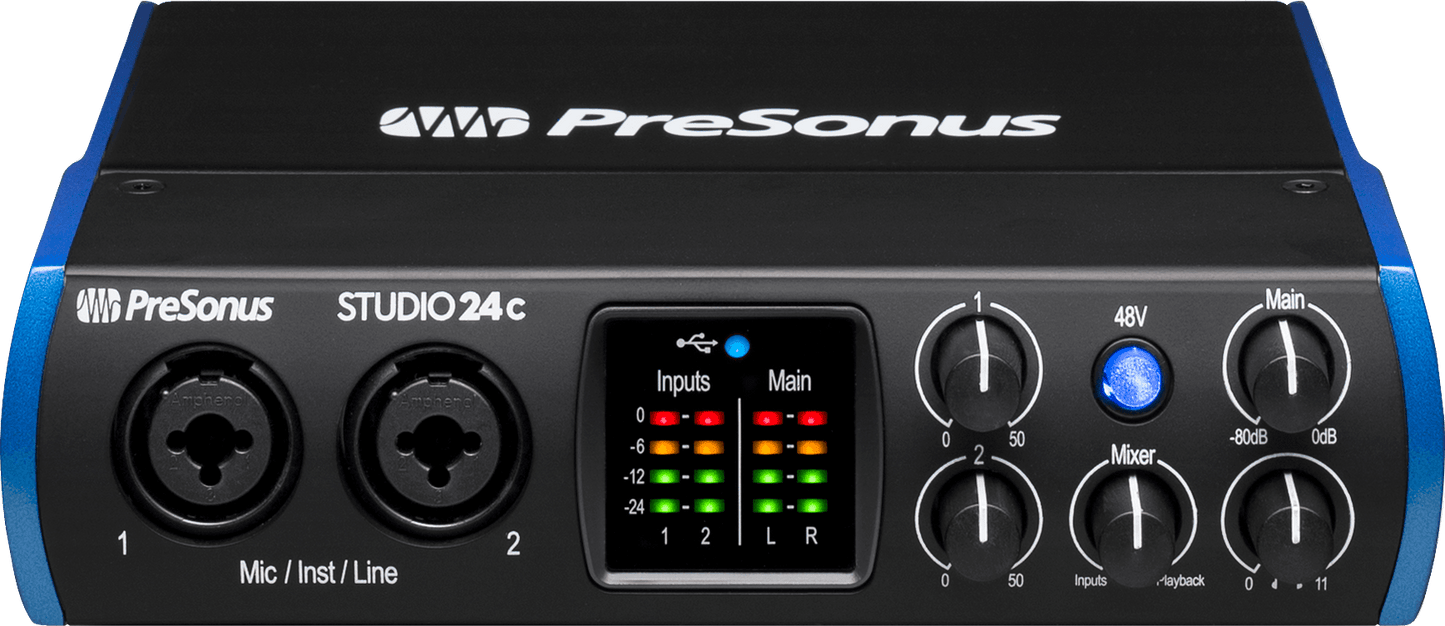

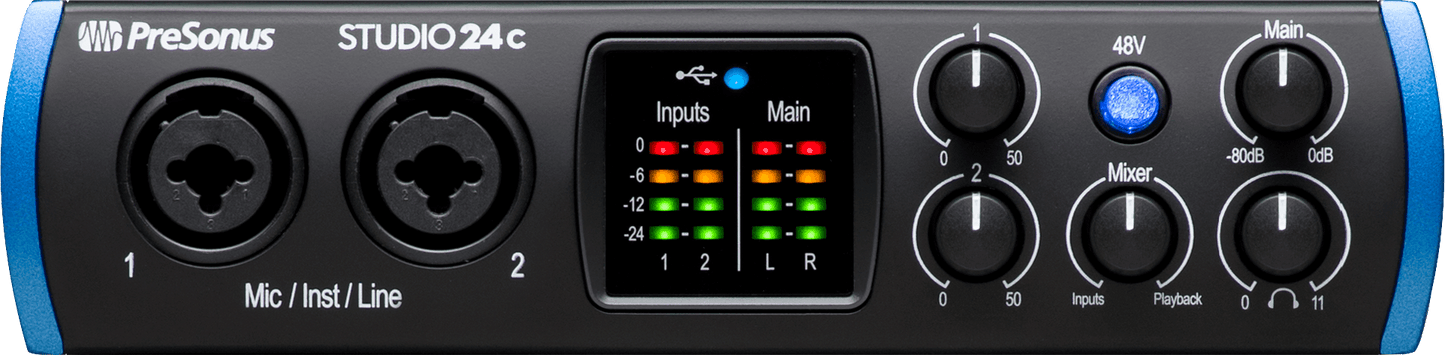

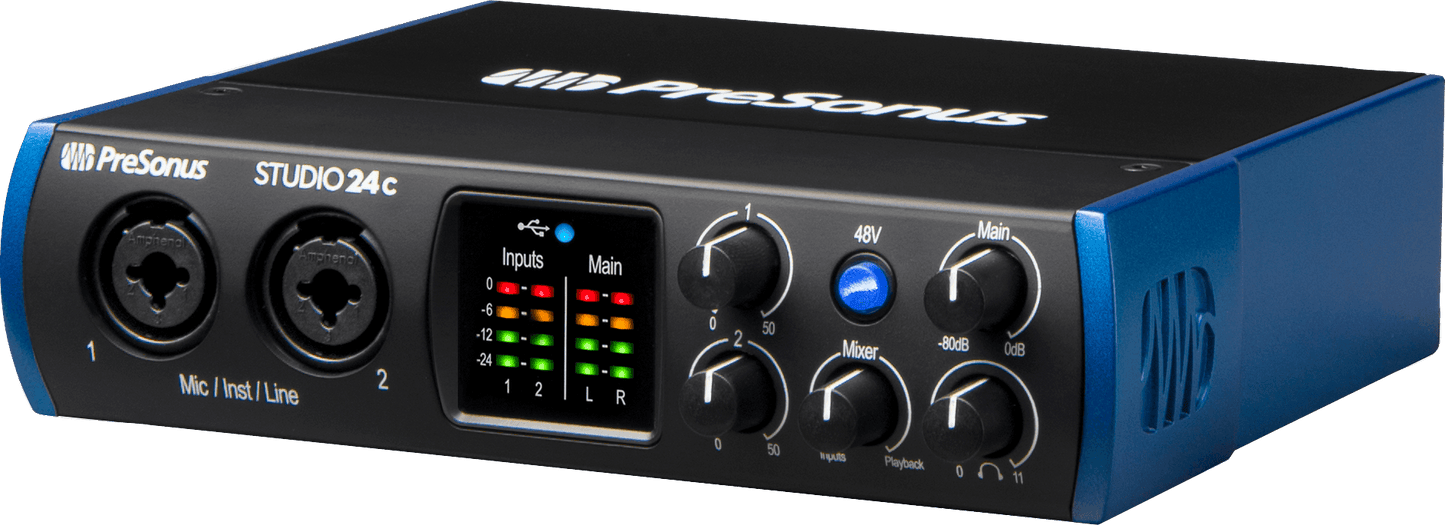

Whether you're recording your first album or your hit podcast's latest episode, the Studio 24c will help you sound your best. With two of PreSonus®' pristine XMAX-L mic preamps for recording vocals, high-headroom instrument preamps so you can connect your guitar or bass directly to your interface, and professional input metering so you can keep track of your recording levels, the Studio 24c delivers amazing sound quality in a rugged, compact form factor.
When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX-L mic preamps let you capture complex musical harmonics smoothly and naturally. Professional input and output metering let you keep an eye on your levels when you're recording by yourself. An easy to use Mix control lets you blend your analog inputs with playback from your computer, making creating a great monitor mix fast and simple.
Whether you're just getting into recording or are a veteran producer who wants to go mobile, the Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. A complete home recording studio right out of the box, the Studio 24c audio interface comes with Fender Studio Pro - 6 Month Trial so you can start recorording right away.
Overview
Features

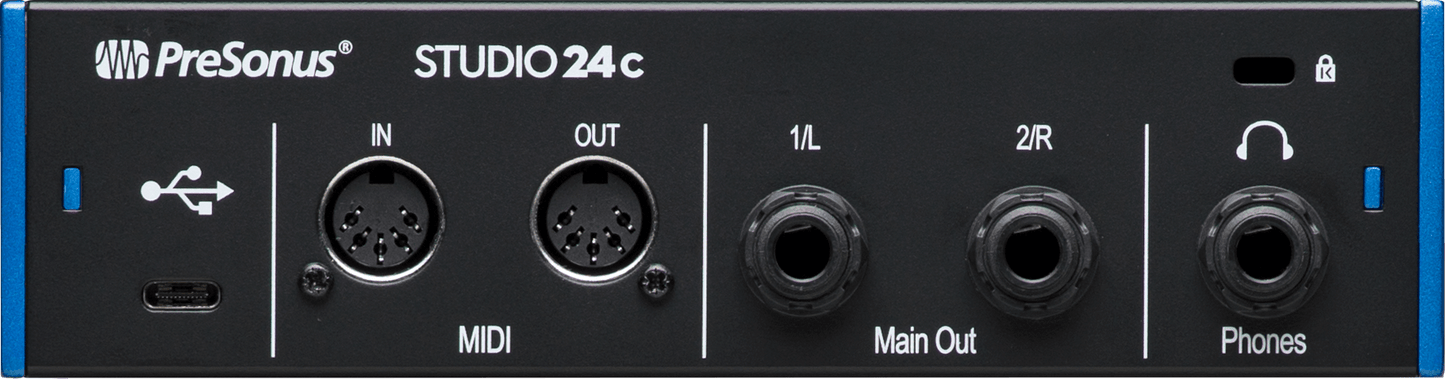

- Simultaneous I/O up to 2 inputs/2 outputs
- 2 mic/instrument/line inputs with XMAX-L mic preamps
- 2 balanced ¼-inch TRS main outputs to connect professional studio monitors
- High-power headphone output
- MIDI In/Out
- Mixer knob for low-latency direct input monitoring
- Front-panel level controls for main outputs
- 4 ladder-style LED level meters (2 input, 2 main output)
- 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
- Fender Studio Pro - 6 Month Trial
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v4.3.3.100963 (Mac)
- Universal Control v4.3.3.100963 (Windows)
- Universal Control v2.10 (Mac)
- Universal Control v2.10 (Windows)
- Universal Control v2.10.1 (Windows)
- Universal Control v3.0.0.51747 (Windows)
- Universal Control v3.0.0.51747 (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Fender Studio Pro - 6 Month Trial
Your hardware registration includes a Fender Studio Pro 6 Month Trial — a great way to start recording and a powerful entryway into the Fender Studio universe. Users can upgrade to Fender Studio Pro when they're ready to take their game to the next level. Compatible with virtually all macOS, and Windows.
Specs
Product Name
Studio 24c, Black and Blue
Series
Studio
Color
Black and Blue
Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Frequency Response
20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)
Input Impedance
1.4 kΩ
Dynamic Range
106 dB (A-Weighted, Minimum Gain)
EIN
-126 dBu (A-Weighted, 150Ω, Maximum Gain)
THD+N
0.004% (1 kHz, -1 dBFS, Minimum Gain)
Gain Range
50 dB
Maximum Input Level
+10 dBu (±0.5 dBu, Minimum Gain)
Phantom Power
+48 VDC, 10 mA
Frequency Response
20 Hz – 20 kHz (±0.1 dBu, Unity Gain, Unweighted)
Dynamic Range
105 dB (A-Weighted, Unity Gain)
THD+N
0.002% (1 kHz, Minimum Gain)
Gain Range
50 dB
Maximum Input Level
+19 dBu (Minimum Gain)
Connection Type
1/4" TRS, Balanced
Connection Type
1/4" TRS, Balanced
Connection Type
1/4” TRS Female, Stereo, Unbalanced
Frequency Response
20 Hz – 20 kHz (±0.5 dBu, Unity Gain, Unweighted)
Impedance Working Range
32Ω to 300Ω
Dynamic Range
83 dB (A-Weighted, 56Ω Load)
THD+N
0.01% (1 kHz, 0 dBFS, Loaded)
Maximum Output Level
47 mW/Channel @56Ω
Connection Type
Dual 5-Pin Female DIN
Voltage
USB Bus Powered
Voltage Requirements
100-240 VAC, 50-60 Hz
Connectivity
USB-C®
Bit Depth
24 Bit
Dynamic Range
108 dB
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, or 192 kHz (kHz)
Height
1.75" (44.45 mm)
Depth
5.5" (139.7 mm)
Width
7" (17.8 cm)
Weight
2 lb. (0.91 kg)
